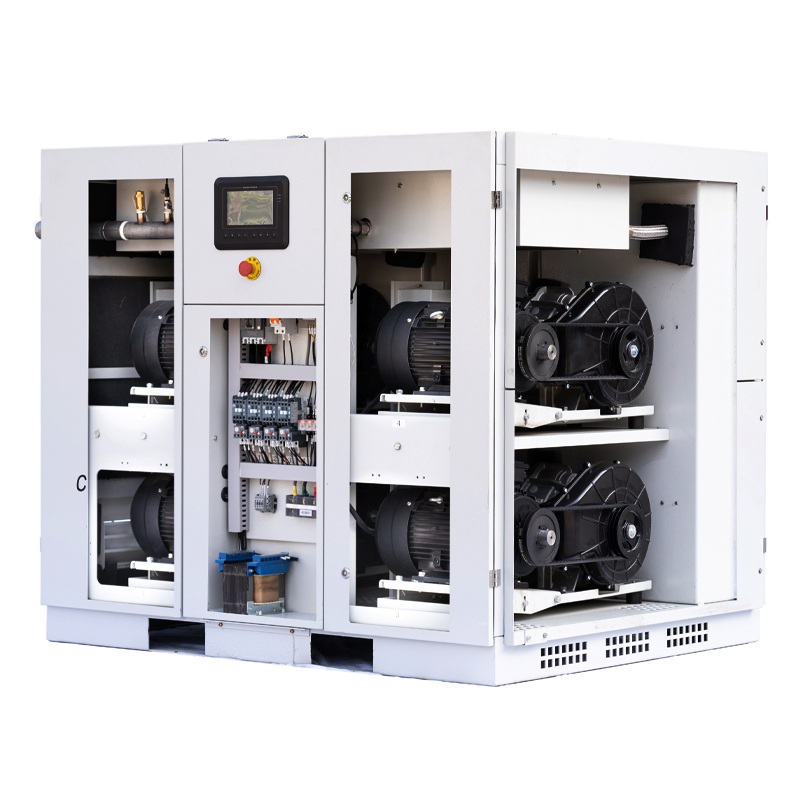

22KW 30HP Oil-free Scroll Air Compressor System
SPECIFICATIONS
Model: DS-XP22A-8
Airflow: 2530L/min, 89.3 CFM
Motor Power: 22kw / 30HP
Motor Protection Grade: IP55
Working pressure: 7 bar-13bar
AC power: 220V 380V 50hz
Panel: HMI
Noise: 65
Numbers of air ends: 5.5KW*4
Cooling by: Air
Outlet caliber: G1-1/2
Air Tank: without (Can be customized)
Drying Device: without (Can be customized)
Outlet gas Oil content standard: Class 0
Size: 1565*1274*1330mm
Weight: 726kg
22KW 30HP Oil-free Scroll Air Compressor System
SPECIFICATIONS
Model: DS-XP22A-8
Airflow: 2530L/min, 89.3 CFM
Motor Power: 22kw / 30HP
Motor Protection Grade: IP55
Working pressure: 7 bar-13bar
AC power: 220V 380V 50hz
Panel: HMI
Noise: 65
Numbers of air ends: 5.5KW*4
Cooling by: Air
Outlet caliber: G1-1/2
Air Tank: without (Can be customized)
Drying Device: without (Can be customized)
Outlet gas Oil content standard: Class 0
Size: 1565*1274*1330mm
Weight: 726kg
